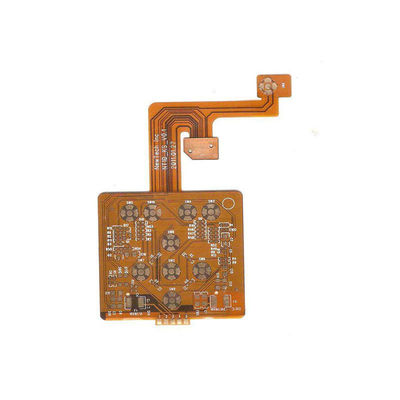

Operatingtemperature minus 20 degrees Celsius to 70 degrees Celsius FPC Membrane Switch with PC PET 0.15 mm Overlay durable and customizable

Product Description:

The FPC Membrane Switch is an advanced and versatile input solution designed to meet the demanding requirements of modern electronic devices. Known for its flexibility, durability, and reliability, the FPC Membrane Switch offers exceptional performance in a compact and lightweight form factor. This product is ideal for applications requiring a responsive and long-lasting interface, such as medical equipment, industrial controls, consumer electronics, and automotive systems.

One of the standout features of the FPC Membrane Switch is its excellent waterproof capabilities, available in IP54, IP65, and IP67 ratings. These waterproof ratings ensure that the switch can withstand exposure to dust, water splashes, and even temporary immersion, making it suitable for use in harsh and challenging environments. Whether it’s used in outdoor equipment or in settings where moisture is present, the FPC Membrane Switch maintains consistent functionality and longevity.

The FPC Membrane Switch is engineered for a long life, providing reliable operation over millions of actuations. This durability is essential for high-usage devices where consistent performance is critical. The long life attribute reduces the need for frequent replacements, lowering maintenance costs and ensuring uninterrupted operation for end users. This makes the FPC Membrane Switch an economical and practical choice for manufacturers and consumers alike.

In terms of actuation force, the FPC Membrane Switch offers a range between 100g to 250g, allowing customization according to user preference and application requirements. This range ensures a comfortable tactile response, balancing ease of use with precision control. Users benefit from a switch that feels responsive and natural, enhancing the overall user experience.

The conductive layer of the FPC Membrane Switch is available in carbon, silver, or other specialized materials, each selected based on specific performance criteria. Carbon conductive layers provide cost-effective and reliable switching capabilities, while silver offers superior conductivity and enhanced durability. The availability of different conductive materials allows the FPC Membrane Switch to be tailored for various electrical and environmental conditions, ensuring optimal performance in every application.

The overlay material used in the FPC Membrane Switch is equally important in defining its tactile feel, durability, and aesthetic appeal. Common overlay materials include PET (Polyethylene Terephthalate), PC (Polycarbonate), Silicone, and Acrylic. PET overlays offer excellent chemical resistance and flexibility, making them suitable for many industrial applications. PC overlays provide high impact resistance and clarity, ideal for devices that require a robust and visually appealing surface. Silicone overlays are favored for their soft touch and superior environmental resistance, especially in medical and outdoor applications. Acrylic overlays deliver excellent optical clarity and surface hardness, suitable for premium products demanding a high-quality finish.

As a Flexible Printed Circuit Membrane Switch, the FPC Membrane Switch integrates a flexible printed circuit, which allows for a slim, lightweight design that can conform to complex shapes and surfaces. This flexibility is a significant advantage in modern device design, where space constraints and ergonomic considerations are paramount. The FPC Keyboard Assembly variant of the membrane switch further enhances its application versatility by combining multiple switch points into a single integrated unit, simplifying installation and reducing wiring complexity.

In summary, the FPC Membrane Switch combines waterproof protection, long operational life, customizable actuation force, and a choice of conductive layers and overlay materials to deliver a highly reliable and adaptable user interface solution. Whether incorporated as a standalone switch or as part of a comprehensive FPC Keyboard Assembly, this flexible printed circuit membrane switch technology offers superior performance, durability, and design flexibility, making it an excellent choice for a wide range of industrial, commercial, and consumer applications.

Features:

• Product Name: FPC Membrane Switch
• Overlay Material: PET, PC, Silicone, Acrylic
• Back Adhesive: M468MP
• Printing Method: Screen Printing, Digital Printing
• Overlay Thickness: PC / PET 0.15 mm
• Available Colors: Pantone, RAL Color, Red, Gray, White
• High-quality FPC Membrane Keypad suitable for various applications
• Durable Flex Circuit Membrane Keyboard with excellent flexibility
• Customizable Flex Circuit Membrane Keyboard to meet specific design needs

Technical Parameters:

Applications:

The Lunfeng FPC Membrane Switch, originating from Shenzhen and certified under ISO9001:2015, is a versatile and reliable solution designed to meet diverse application needs. As a Flexible Printed Circuit Keyboard, it offers exceptional durability and flexibility, making it ideal for use in various industries and environments. The product's advanced circuit design options, including single, double, and multi-layer configurations, allow for customized functionality tailored to specific operational requirements.

This FPC Membrane Switch is widely applied in scenarios where compact, lightweight, and responsive input devices are essential. For instance, it is commonly used in consumer electronics such as remote controls, medical devices, and handheld instruments, where precise actuation force ranging from 100g to 250g ensures comfortable and accurate user interaction. The round embossing keys enhance tactile feedback, improving user experience across all applications.

Industrial equipment and control panels also benefit from the Lunfeng FPC Membrane Switch’s robust construction and reliable performance. The conductive layer options, including carbon, silver, or other materials, provide excellent conductivity and longevity, even in demanding conditions. Its back adhesive, M468MP, offers strong adhesion to various substrates, ensuring stability and ease of installation in manufacturing lines or field maintenance.

Furthermore, the flexible nature of this membrane switch makes it suitable for wearable technology and automotive controls, where adaptability and space-saving design are critical. The product is packaged carefully in PE bags and cartons or according to customer requests, ensuring safe delivery within 7 to 30 days. With a minimum order quantity of just 1 piece and pricing dependent on design complexity, Lunfeng offers a cost-effective and customizable solution for businesses of all sizes.

Payment terms require 100% TT in advance, reflecting the commitment to quality and timely delivery that Lunfeng upholds. Overall, the Lunfeng FPC Membrane Switch is an excellent choice for anyone seeking a flexible, durable, and high-performance Flexible Printed Circuit Keyboard adaptable to a wide range of application occasions and scenarios.

Customization:

Lunfeng offers professional product customization services for FPC Membrane Switch products, specializing in Flexible PCB Membrane Keypad and Flexible Printed Circuit Keyboard solutions. Our model number Lunfeng membranes are manufactured in Shenzhen and certified with ISO9001:2015, ensuring high-quality and reliable performance.

We provide customization options including keys with round embossing and long life features, tailored conductive layers such as carbon, silver, or other materials, and versatile circuit designs including single, double, and multi-layer configurations. Overlay materials can be customized using PET, PC, silicone, or acrylic to meet your specific requirements.

Our minimum order quantity is 1 Pc, allowing for flexible order sizes based on your project needs. Pricing depends on the design complexity and specifications provided. Packaging is handled carefully with PE bags, cartons, or according to customer requests to ensure safe delivery.

Delivery time ranges from 7 to 30 days depending on order details. Payment terms are 100% TT in advance for secure and smooth transactions. Choose Lunfeng for your FPC Membrane Switch needs and experience professional customization services tailored to your unique Flexible PCB Membrane Keypad and Flexible Printed Circuit Keyboard requirements.

Support and Services:

Our technical support team is dedicated to providing comprehensive assistance for the FPC Membrane Switch product. We offer expert guidance on product selection, design customization, installation procedures, and troubleshooting to ensure optimal performance and longevity of your membrane switch applications.

Services include design consultation to tailor the membrane switch to your specific requirements, prototype development, and testing support. We also provide detailed documentation and resources to facilitate seamless integration with your existing systems.

For maintenance and repair, our specialists can help diagnose issues and recommend effective solutions to minimize downtime. We are committed to delivering timely and efficient support to keep your operations running smoothly.

Whether you need help with technical specifications, compatibility questions, or post-installation support, our knowledgeable team is here to assist you throughout the lifecycle of your FPC Membrane Switch product.

Packing and Shipping:

Product Packaging and Shipping for FPC Membrane Switch

Each FPC membrane switch is carefully inspected and tested to ensure high quality and functionality before packaging. The membrane switches are individually packed in anti-static bags to protect against moisture and electrostatic discharge.

For added protection during transit, the packaged switches are placed in sturdy, corrugated cardboard boxes with adequate cushioning materials such as foam or bubble wrap to prevent damage.

Standard packaging quantities are determined based on order size, with clear labeling and documentation included for easy identification.

Shipping options include air freight, sea freight, and express courier services, depending on customer requirements and destination. All shipments are tracked, and customers receive tracking information promptly.

We ensure timely delivery by coordinating with reliable logistics partners and providing professional handling throughout the shipping process.

FAQ:

Q1: What is the brand and model number of the FPC Membrane Switch?

A1: The brand name is Lunfeng, and the model number is also Lunfeng.

Q2: Where is the FPC Membrane Switch manufactured?

A2: It is manufactured in Shenzhen, China.

Q3: What certifications does the Lunfeng FPC Membrane Switch have?

A3: The product is certified with ISO9001:2015.

Q4: What is the minimum order quantity and pricing for the Lunfeng FPC Membrane Switch?

A4: The minimum order quantity is 1 piece, and the price depends on the design specifications.

Q5: What are the packaging and delivery details for this product?

A5: The product is packaged in PE bags and cartons or according to the customer's request. Delivery time ranges from 7 to 30 days.

Q6: What are the payment terms for ordering the Lunfeng FPC Membrane Switch?

A6: Payment is required 100% via telegraphic transfer (TT) in advance.
